Duplex Thermocouple Probe With Connector

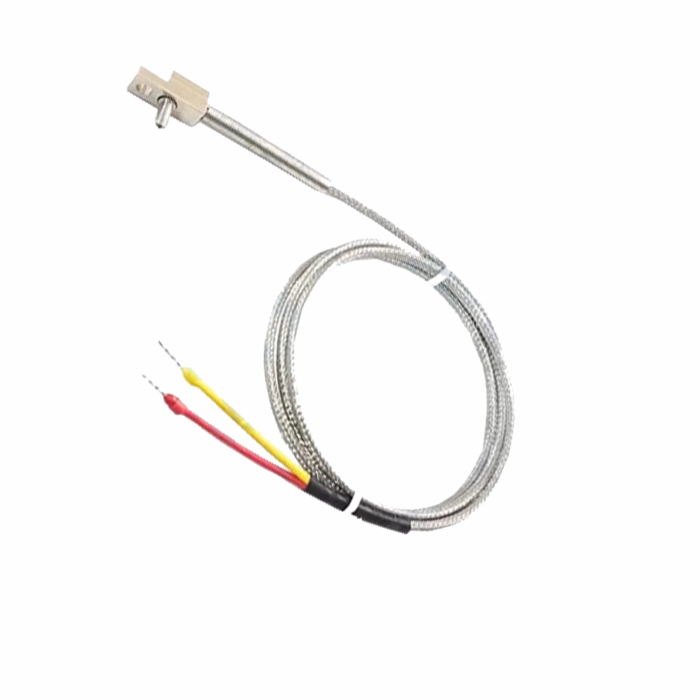

Manifold Thermocouple

Type: K-Type
Configuration: Simplex, 2 Wire
Tip od: 4 mm
Tip Length: 15 mm

Material: SS
Temperature range: 250℃

Cable Length: 2 Meter
Cable insulation: FG/FG/SS
Shape: L -Type

For More Information Contact :- 8474900099

Add to quote
Category:
Description

PRODUCT INFO

  • Manifold thermocouple is a general-purpose temperature sensor designed to suit all applications where medium to low profile temperature detection is required. The thermocouple is designed to sense temperature where the metal sensor tip is fitted directly into a drilled hole.

    • TECHINICAL SPECIFICATION

    Type: K-Type
    Configuration: Simplex, 2 Wire
    Tip od: 4 mm
    Tip Length: 15 mm

    Material: SS
    Temperature range: 250℃

    Cable Length: 2 Meter
    Cable insulation: FG/FG/SS
    Shape: L -Type
