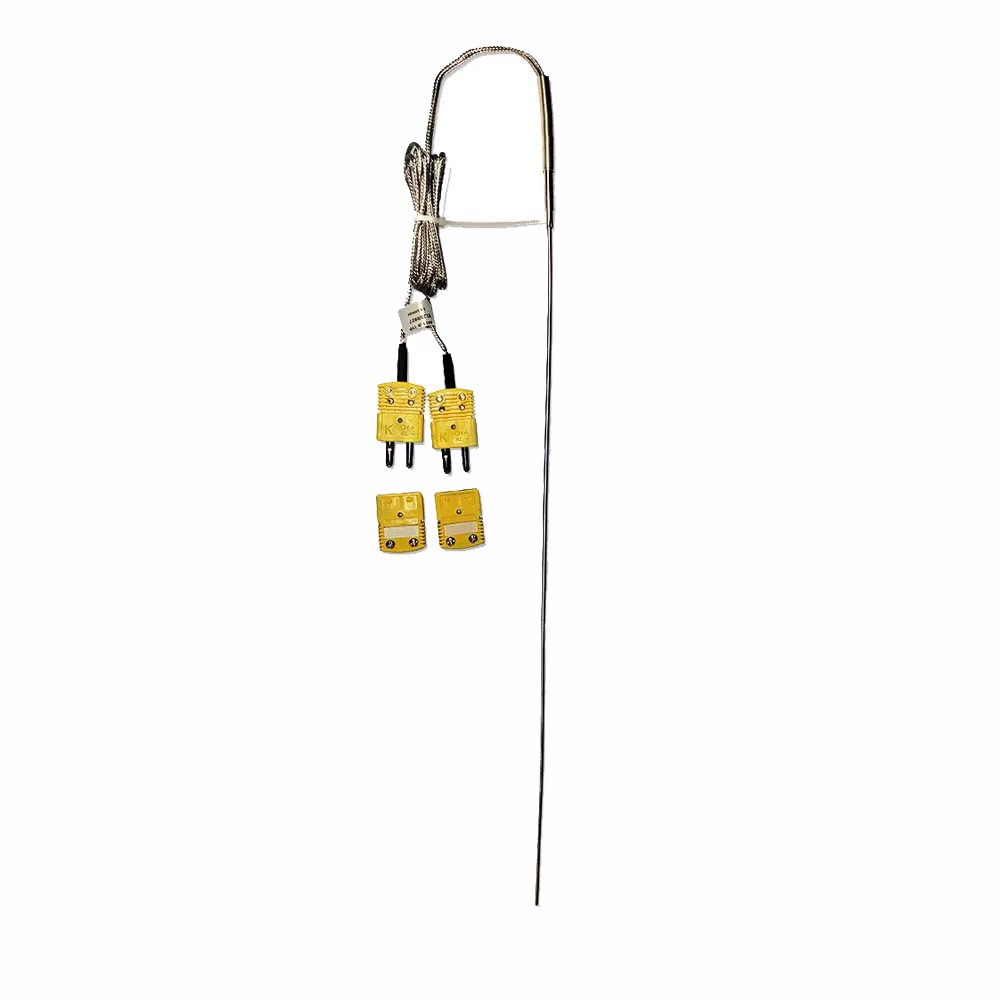

Duplex Thermocouple Probe With Connector

Type: K (Cr/Al)

Make: Aavad

Model: AKED – 3×300

Configuration: Duplex

Temperature range: 0 To 1200℃

Material of construction: SS 310

Insulation: Compacted MgO insulation

Cable length: 2 Meter

Cable type: FG/FG/SS

Sensor od: 3 mm

Sensor length: 300 mm

Connector: Omega type big Male – Female Connector

For More Information Contact :- 8474900099

Add to quote
Category:
Description

PRODUCT INFO

  • Duplex Thermocouples?use two junctions in one sensor. Duplex Thermocouples are used in applications where downtime must be kept to a minimum, one sensor will be used until it reaches the end of its lifespan, then the wire can be quickly swapped round to the other junction and a replacement sensor can be ordered.

    • TECHINICAL SPECIFICATION

    Type: K (Cr/Al)

    Make: Aavad

    Model: AKED – 3×300

    Configuration: Duplex

    Temperature range: 0 To 1200℃

    Material of construction: SS 310

    Insulation: Compacted MgO insulation

    Cable length: 2 Meter

    Cable type: FG/FG/SS

    Sensor od: 3 mm

    Sensor length: 300 mm

    Connector: Omega type big Male – Female Connector
