K Type Thermocouple Probe

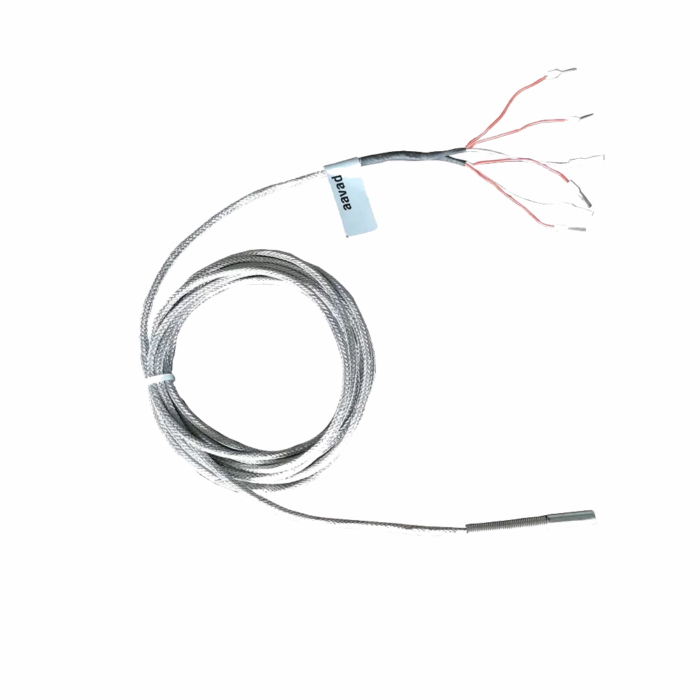

Compact RTD Sensors With Transmitter

Type: PT-100
Make: Aavad
Model: APES
Configuration: Duplex
Total no. of wires: 3+3
Accuracy: Class A
Temperature range: -50 to 400℃
Material of construction: SS 316
Insulation: Compacted MgO insulation
Cable length: 1 meter
Cable type: TF/TF/SS
Sensor od: 8 mm
Sensor length: 50 mm

Temperature Transmitter

Input: Rtd

Power supply: 24V DC

Output: 4 -20 mA, 2 wire (single output)

Calibration range: -50 TO 400  Degree C

For More Information Contact :- 8474900099

Add to quote
Category:
Description

PRODUCT INFO

  • RTD or resistive temperature detector is?a probe or a device used to measure and control temperature across industrial applications. A resistor changes its value based on the change on temperature. So, the temperature measurement is relative and not absolute.

    • TECHINICAL SPECIFICATION

    Type: PT-100
    Make: Aavad
    Model: APES
    Configuration: Duplex
    Total no. of wires: 3+3
    Accuracy: Class A
    Temperature range: -50 to 400℃
    Material of construction: SS 316
    Insulation: Compacted MgO insulation
    Cable length: 1 meter
    Cable type: TF/TF/SS
    Sensor od: 8 mm
    Sensor length: 50 mm

    Temperature Transmitter

    Input: Rtd

    Power supply: 24V DC

    Output: 4 -20 mA, 2 wire (single output)

    Calibration range: -50 TO 400  Degree C
